Introduction

Thanks for trying OpenICE!

This guide aims to introduce readers to medical device integration using the Open-source Integrated Clinical Environment (OpenICE). OpenICE is a distributed system platform for connecting network nodes together - e.g.:

  • medical devices found in an OR or ICU,
  • blackbox recording applications (i.e. data logging),
  • applications for clinical decision support (CDS),
  • and external interfaces to other healthcare IT (HIT) systems like EMR flowsheets.

OpenICE automates peer-to-peer node discovery, data publishing and subscribing between nodes, as well as proprietary medical device protocol translation. Users and developers of the OpenICE platform get the data they need, in a common sensible format, seamlessly delivered to the destinations they want.

OpenICE has been called an open clinical research platform, an abstraction layer for medical devices, a medical Internet of things (MIoT) platform, a cyber-physical system (CPS) test tool, an app hosting environment, amongst other names. The current version of OpenICE enables users to convert heterogeneous medical device data from supported devices into a common structure and protocol, and to exchange that data with demonstration clinical applications on a different machine (or machines). OpenICE includes several simple but useful sample applications as well as example code to help users to write their own.


openice setup

Click to view larger - An example OpenICE implementation for collecting data from an MP70, a PB840, and a simulator.


System Component Overview

The OpenICE application is the entry and exit point for medical device data into and out of the network. OpenICE has two operating modes: Supervisor and Device-Adapter.

The Device-Adapter software acts as a bridge that will to connect both real and simulated medical devices into the OpenICE network. The Device-Adapter software translates the proprietary device communication protocols into the standard OpenICE data structures (described in ice.idl) and communication protocol.

The Supervisor runs clinical applications and subscribes to all medical devices in the same Domain and Patient Context.

openice setup

Downloading and Installing

The OpenICE device-adapter and supervisor are distributed as one JAR for your convenience. You can download the software by clicking here. To view the different releases available, check the files section of github.

Linux
  1. Unzip the archive OpenICE-0.6.3.tar.gz. It will create a directory called OpenICE-0.6.3.
  2. Within the OpenICE-0.6.3 directory, navigate to the bin directory.
  3. Within the bin directory, run the OpenICE script.
NOTE: For Linux platforms, a Java 8 runtime environment is not included. Please download a JRE from Oracle.
Macintosh
  1. Double-click the installer package. (OpenICE-0.6.3.pkg)
  2. Follow the prompts to install the software.
  3. In the Applications menu, run OpenICE.
Windows
  1. Double-click the executable to install. (OpenICE-0.6.3-x86.exe)
  2. Follow the prompts to install the software.
  3. In the Start menu, run OpenICE.

Running OpenICE Software from the GUI

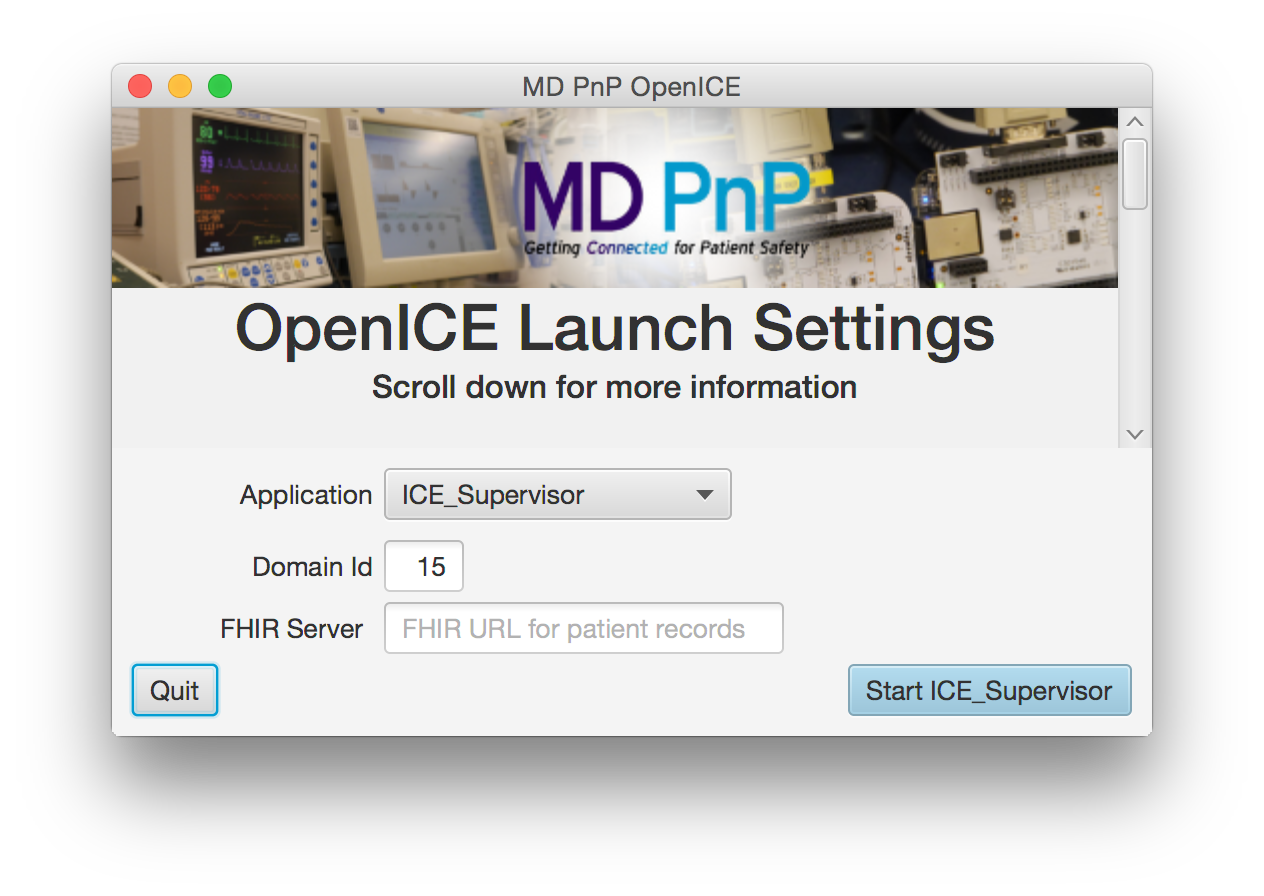

Launch OpenICE. When open, the OpenICE application presents a start menu GUI. This menu is used to configure the mode of operation of the OpenICE application.

NOTE: If you would like to use the GUI to start both the Supervisor and a Device-Adapter(s), run the Supervisor first and start Device-Adapters from within the Supervisor.
Application
Choose which software mode to run the application as: ICE Supervisor or ICE Device Interface (same as device-adapter). The ICE_Supervisor hosts clinical applications. The ICE_Device_Interface connects a medical device to the OpenICE network.
Domain ID
OpenICE systems on the same network can coexist by using different integer domain identifiers. If there are no other ICE systems on your network then any value may be used. The default value used at MD PnP is 15.
FHIR Server
(Optional) This is the base URL of an HL7 FHIR (Fast Healthcare Interoperability Resources) server from which patient information should be received.This field can be left blank to use a local database of patients.
openice start menu
